19
2024-10

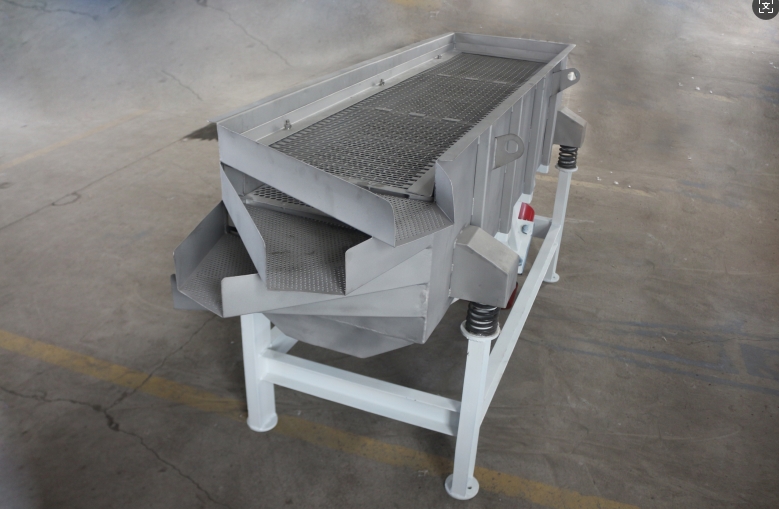

The role of wear-resistant coating on linear vibrating screen
One of the effective measures to protect the linear vibrating screen is the
wear-resistant coating. The functions and methods of using wear-resistant coatings generally
include the following two aspects: 1、 Linear vibrating screens are generally easy to operate, require a large
amount of work, and have high efficiency. The materials screened are usually
large or hard, and long-term use may inevitably cause wear on the coating. If the degree of wear is high, the function of the coating will also fail,
so wear failure is one of the main forms of failure for these wear-resistant
coatings on vibrating screens. The wear failure mechanism varies for different types of coatings. But in
terms of the main aspect, it is deformation and wear caused by insufficient
coating strength. In response to this issue, the linear vibrating screen industry has come up
with a solution. When using coatings, we can introduce benzene rings or other
rigid segments into the coating to increase the degree of polymer cross-linking
and polar group content, and fully utilize hydrogen bonds to enhance
intermolecular forces; It is also possible to increase rigidity by adding some
corundum, quartz, or metal powder. Both methods have their own advantages, and we can make a choice based on
actual needs. The latter may have some adverse effects to varying degrees. 2、 The adhesion failure of the coating on the linear vibrating screen is
another major reason for the failure of the wear-resistant coating. Ensuring that the coating does not peel off in practical applications is a
key factor in the success or failure of coating applications. Some manufacturers use coating adhesion techniques that are unsuccessful,
and the quality of the tree branches or adhesives used is poor, making them easy
to peel off in water or cold conditions. Therefore, high-strength adhesives and improved resins should be used as
much as possible to increase the content of polar groups and achieve better
adhesion between the two in a straight line. The higher the viscosity of the improved coating, the stronger the coating
on the linear vibrating screen, making it less likely to fall off easily. This
is a great protective effect for the linear vibrating screen.
MORE
19
2024-10
Analysis on the problem of material deviation during the use of linear vibrating screen
Analysis on the problem of material deviation during the use of linear
vibrating screen: The use of linear vibrating screens is becoming increasingly common due to
their widespread application in various industries, and the problem of material
deviation has been a long-standing issue. The following is a summary of the
reasons for material deviation in linear vibrating screens. 1. Installation issues with vibration motors Due to the fact that the transportation and screening of materials by the
linear vibrating screen is carried out through the vibration source body - the
vibration motor - which provides a designed fixed direction and fixed size of
excitation force to push the material. Therefore, when there is poor material
transportation, it can be basically judged that there is a problem with the
installation angle of the vibration motor. 2. Not feeding evenly as required If you have read the manual of the linear vibrating screen in detail, you
should know that the repeated requirement is: uniform feeding. If there are
fluctuations in the amount of material fed, it is easy to cause unstable
screening accuracy, and the deviation of material stress due to the amount of
material can lead to the problem of discharge deviation. 3. Aging and loosening of components In addition to the vibration motor providing the main screening power for
the linear vibrating screen, the damping springs in the linear vibrating screen
also affect the screen force and the horizontal stability of the screen body to
some extent. As the saying goes, one pull can move the whole body. If a
component experiences aging or other issues, it can cause the discharge
direction to deviate due to uneven screening surfaces, unstable screening
machines, etc. In severe cases, there may even be sudden abnormal noise, severe
wear of vibrating screens, and reduced lifespan. Therefore, it is very necessary
to regularly inspect and maintain the equipment, and the materials used for the
components are also crucial. 4. Screen box deformation The sieve box refers to the part above the vibration motor and below the
feeding port, consisting of a sieve frame and the sieve surface fixed around it.
Under normal operation of the linear vibrating screen, especially for large and
high-frequency linear vibrating screens, the screen frame requires both the
gravity of a large batch of screened materials and the strong excitation force
of the vibration motor. If the strength is not sufficient, it is easy to cause
deformation, damage, and other problems. The strength of the screening box
mainly depends on the manufacturer's material selection, welding process, and
additional stable design. In summary, the operation of a linear vibrating screen is related to many
aspects, including the manufacturer's material selection quality, manufacturing
process, and whether the customer's installation, operation, and maintenance are
standardized. When there is a problem of material deviation, customers can
eliminate the problem one by one based on the above factors and find
corresponding solutions.
MORE
19
2024-10
What are the classification types of vibrating screens
Classification of vibrating screens: Vibration screening equipment can be divided into mining vibrating screens, lightweight fine vibrating screens, and experimental vibrating screens according to their weight and usage. Mining vibrating screens can be divided into: high-efficiency heavy-duty screens, self centering vibrating screens, elliptical vibrating screens, dewatering screens, circular vibrating screens, banana screens, linear vibrating screens, etc. Lightweight fine vibrating screens can be divided into: rotary vibrating screen, linear screen, straight row screen, ultrasonic vibrating screen, filter screen, etc. You can refer to the vibrating screen series. Experimental vibrating screen: please refer to the experimental equipment for tapping screen, top impact vibrating screen machine, standard inspection screen, electric vibrating screen machine, etc. According to the material running trajectory of the vibrating screen, it can be divided into: Divided by linear motion trajectory: Linear vibrating screen (material moves forward in a straight line on the screen surface). Divided by circular motion trajectory: circular vibrating screen (material moves in a circular motion on the screen surface) structure and advantages. Divided by reciprocating motion trajectory: fine screening machine (material moves forward in a reciprocating motion on the screen surface). Vibration screens are mainly divided into linear vibration screens, circular vibration screens, and high-frequency vibration screens. The vibrating screen can be divided into single axis vibrating screen and double axis vibrating screen according to the type of vibrator. A single axis vibrating screen uses a single unbalanced weight to excite the screen box, causing the screen surface to tilt and the motion trajectory of the screen box to be generally circular or elliptical. Double axis vibrating screen is a type of screen that utilizes synchronous and opposite rotation of unbalanced weights to excite vibration. The screen surface is horizontal or gently inclined, and the motion trajectory of the screen box is a straight line. There are various types of vibrating screens, including inertial vibrating screens, eccentric vibrating screens, self centering vibrating screens, and electromagnetic vibrating screens. Linear vibrating screen: Vibration screen is a widely used screening machinery in industries such as coal, used for material classification, washing, dehydration, and media removal. Among them, the linear vibrating screen has been widely used due to its high production efficiency, good grading effect, and convenient maintenance. During the working process, the dynamic performance of the vibrating screen directly affects the screening efficiency and service life. The vibrating screen uses a vibration motor to excite the material as a vibration source, causing it to be thrown up on the screen while moving forward in a straight line. The material is evenly fed from the feeder into the feed inlet of the screening machine, and through multiple layers of screens, several specifications of sieved and undersized materials are produced, which are discharged from their respective outlets. Linear vibrating screen (linear screen) has the advantages of stability, reliability, low consumption, low noise, long service life, stable vibration mode, and high screening efficiency. It is an efficient and new type of screening equipment widely used in industries such as mining, coal, smelting, building materials, refractory materials, light industry, and chemical industry. Circular vibrating screen: Circular vibrating screen (circular vibrating screen) performs circular motion and is a multi-layer, high-efficiency new type of vibrating screen. The circular vibrating screen adopts a cylindrical eccentric shaft exciter and a bias block to adjust the amplitude. The material screening line is long, and there are multiple screening specifications. It has the characteristics of reliable structure, strong excitation force, high screening efficiency, low vibration noise, durability, easy maintenance, and safe use. The circular vibrating screen is widely used in product grading in industries such as mining, building materials, transportation, energy, and chemical industry. According to the material product and user requirements, high manganese steel woven screen, punched screen, and rubber screen can be used. There are two types of screen: single-layer and double-layer, and each type of screen can meet different screening requirements. This series of circular vibrating screens is seat mounted. The adjustment of the inclination angle of the screen surface can be achieved by changing the position and height of the spring support. Elliptical sieve: Elliptical sieve refers to a vibrating screen that follows an elliptical motion trajectory, which has the advantages of high efficiency, high screening accuracy, and wide applicability. Compared with ordinary screening machines of the same specifications, it has a larger processing capacity and higher screening efficiency. Suitable for solvent and cold sintered ore screening in the metallurgical industry, ore grading in the mining industry, and grading, dewatering, and desliming operations in the coal industry. It is an ideal substitute for existing large vibrating screens and imported products from abroad. TES three-axis elliptical vibrating screen is widely used for screening operations in quarries and sand and gravel materials, and can also be used for product grading in coal selection, mineral processing, building materials, construction, and power chemical industries. Screening principle: Power is transmitted from the motor to the active shaft of the exciter and the gear vibrator (with a speed ratio of 1) through a V-belt, achieving three shafts rotating at the same speed to generate excitation force. The exciter is connected to the high-strength bolts of the screen box, producing elliptical motion. The material moves along with the high-speed elliptical motion of the screening machine on the screen surface, quickly layering, sieving, and moving forward, ultimately completing the classification of the material. The obvious advantages of three-axis elliptical sieve: The three-axis drive can generate ideal elliptical motion in the screening machine, which combines the advantages of circular vibrating screen and linear vibrating screen. The elliptical trajectory and amplitude can be adjusted, and the vibration trajectory can be selected according to the actual material condition, which is more advantageous for difficult to screen materials; Three axis drive forced synchronous excitation can enable the screening machine to obtain a stable working state, which is particularly advantageous for screening with large processing capacity requirements; The three-axis drive improves the stress state of the screen frame, reduces the load on a single bearing, evenly distributes the force on the side plate, reduces stress concentration points, improves the stress conditions of the screen frame, enhances the reliability and lifespan of the screen machine, and lays a theoretical foundation for the large-scale development of the screen machine. Due to its horizontal installation, the height of the unit is effectively reduced, which can well meet the needs of large and medium-sized mobile screening units. Thin oil lubrication of bearings effectively reduces bearing temperature and improves service life; With the same screening area, the yield of elliptical vibrating screen can be increased by 1.3-2 times. Thin oil vibrating screen: The thin oil vibrating screen has a large processing capacity and high screening efficiency; The vibrator adopts a bearing lubrication with thin oil and an external block eccentric structure. Has the characteristics of high excitation force, low bearing load, low temperature, and low noise (bearing temperature rise less than 35 ° C); The vibrator is easy to disassemble, maintain, and replace as a whole, greatly reducing the maintenance cycle (replacing the vibrator only takes 1-2 hours); The side plate of the screening machine adopts whole plate cold work, no welding, high strength and long service life. The connection between the crossbeam and the side plate is made with high-strength bolts that resist torsion and shear, without welding, and the crossbeam is easy to replace; The screening machine adopts rubber spring vibration reduction, which has the advantages of low noise, long service life, smooth passing through the common vibration zone, and low dynamic load on each fulcrum of the screening machine compared to metal springs; The connection between the motor and the exciter adopts a flexible coupling, which has the advantages of long service life and low impact on the motor. This screening machine series is widely used for grading operations in industries such as coal, metallurgy, hydropower, mining, building materials, chemical, power, transportation, and ports.
MORE
14
2023-01
What matters need to pay attention to before the rotary vibrating screen starts
Rotary vibrating screen is the most widely used in the vibrating screen
family, because of its shape characteristics and the characteristics of
screening materials, it is also called a round vibrating screen or a round
screen powder machine. Its applicable materials are very wide, and liquids,
granules, and powders can be sieved. It is precisely the liberalization of
customization and high penetration that has created a high market share of
rotary vibrating screens. Then, the precautions for the start-up operation of
the rotary vibrating screen have become the things that the rotary vibrating
screen manufacturers need to synchronize and popularize, so that users can use
it better. The precautions before turning on the rotary vibrating screen will be
popularized today. 1. Remove the transportation support frame: In order to avoid damage to the shaker equipment during transportation, the
rotary vibrating screen manufacturer will install three support frames made of
flat steel before leaving the factory. The user requires that the support frame
must be removed before the first startup. Otherwise, the rotary vibrating screen
cannot operate normally, and there are signs to indicate the installation
position of the support frame, and the general position is near the vibration
spring. 2. Check the tightening of the accessories of the rotary vibrating
screen: Before using the equipment, carefully check the firmness of the vibration
motor, locking ring, shock-absorbing spring and other components; check the
fasteners of the vibrating screen, the bolts of the whole machine are tightened
in place before leaving the factory, but the user is required After using for a
period of time, the bolts of the whole machine are required to be tightened
again, and the bolts will loosen under the condition of stress relief. If any
looseness is found, it should be tightened in time. 3. Fixed corner: Since the vibrating screen is a screening purpose achieved by vibrating
motor, high-frequency vibration will be generated during screening, and the
phenomenon of the overall movement of the screen machine will be generated.
Therefore, the bottom barrel needs to be fixed at the corner when it is used for
the first time, which can effectively protect the equipment and Improve
screening efficiency. 4. Screen tightness: The tightness of the screen of the rotary vibrating screen is generally
installed in place before leaving the factory, but the equipment made by some
small manufacturers is difficult to say. The user should pay attention to the
tightness of the screen when using the rotary vibrating screen for the first
time, the screen is too loose Material penetration rate will drop. 5. Check the running direction of vertical vibration motor: Vertical vibration motor is the vibration source of the rotary vibrating
screen equipment. The rotation direction of the vibration motor has a certain
influence on the screening performance. The direction of the vibration motor
normally rotates clockwise. In addition, users can flexibly adjust the angle of
the eccentric block of the vibration motor and change the material screening
method. The user should adjust the eccentric block to the appropriate position
according to the different moisture content, viscosity and specific gravity of
the material. 6. After the feeding is completed, let the round sieve powder machine
continue to run for about 5 minutes, so that the screen and bottom materials are
completely discharged to avoid the residual materials from getting wet, the next
screening effect of the sound, or due to the replacement of materials and mesh
The problem of mixing.
MORE
14
2023-01
Summary of solutions for vibrating screen
1. Regularly check the tension and flatness of the screen. When replacing
the screen, it must be replaced in strict accordance with the requirements of
the linear vibrating screen manufacturer. There must be more than 2 people to
cooperate. One person is responsible for tensioning the screen and the other is
responsible for fastening. Screen. It is worthwhile to pay attention to the
uniform and quantitative scientific feeding method when feeding, which can
effectively avoid the sieving surface loosening and damage caused by the uneven
thickness of the material stacked on the sieve surface. 2. The installation of the screen box is generally the responsibility of
the shaker manufacturer. If there is a phenomenon of non-feeding caused by the
level of the screen box, please contact the manufacturer immediately to ask for
after-sales service, and please have a specialized technician come to the scene
to carry out the horizontal exposure Adjustment of the horizontal plane. 3. The maintenance of the vibration motor's excitation force needs to be
performed on a regular basis for lubrication and maintenance. If the vibration
motor's excitation force needs to be adjusted due to material replacement or
output changes, it can increase the allocation of the eccentric weights above
and below the vibration motor. Number of chunks. The upper hammer mainly generates horizontal excitation force, thereby
allowing the material to move horizontally on the screen surface, and completes
the process of the material diffusing outward from the middle. At the same time,
the magnitude of the horizontal vibration amplitude determines the speed of the
material movement; This can be achieved by increasing the weight of the upper
eccentric weight. As the weight increases, the vibration amplitude increases,
otherwise it decreases. In order to better achieve better screening efficiency, you need to combine
with the manufacturer to make a suitable adjustment plan according to the
material characteristics. 4. If the original shaker spring equipped with aging needs to be replaced,
it is recommended to choose a support spring with a certain toughness as the
support of the linear vibration screening machine to avoid damage to the support
spring due to excessive rigidity. If it is not clear, you can directly contact
your equipment manufacturer and ask them to equip them with another damping
spring of the same model. In a word, in the actual production screening process, the efficiency of
the linear vibrating screen is a dynamic balance maintenance issue. Any
unreasonable component or link may cause the vibrating screen to appear similar
to "no feed, no feed". Such as the problems that affect the screening accuracy
and screening efficiency, what we have to do at this time is to calm down, find
the real cause of damage and optimize and adjust it. It is also a good choice to
seek professional help from the shaker manufacturer.
MORE
14
2023-01
To improve the screening efficiency of linear vibrating screen, these aspects should not be ignored
Linear vibrating screen is one of the main equipment in the crushing and
screening process, and also the key equipment for providing qualified materials
for subsequent operation. Its screening efficiency directly affects the
subsequent operation. In the actual plant, the main factors affecting the
screening efficiency of linear vibrating screen include material properties,
screen surface structure parameters, vibration characteristics parameters and so
on. Below, we will analyze how the above aspects affect the screening effect of
linear vibrating screen. First、 Material properties The properties of the selected materials are one of the main factors
affecting the screening efficiency of the linear vibrating screen, and the
material properties are mainly reflected in the loose density, particle size and
shape of the materials. 1. Loose density of selected materials Generally, the loose density of materials is large and block particles,
easy to pass through the screen, and the screening efficiency is high. On the
contrary, the loose density of materials is small and the powder materials are
not easy to pass through the screen, and they are easy to stay on the screen,
which will limit or block the screen, so that the effective screening area of
the sieve will be reduced, and the screening efficiency will be affected. In
order to ensure the screening efficiency, the loose density of the selected
materials should be controlled. 2. Selected material size The particle size of selected materials is also an important factor
affecting the screening efficiency of linear vibrating screen. The size of the
particles of the materials entering the screen shall meet the size of the sieve
hole. The size of the particles is small and easy to pass through the screen,
and the size of the materials is not easy to pass through the screen. In order
to ensure the screening efficiency, the particle size of the materials entering
the screen shall be strictly controlled. 3. Shape of materials in sieve The shape of the materials into the screen will affect the sieve property.
Generally, the particles are full of grinding and the mineral particles with
specifications are easy to pass through the screen. The irregular shape of the
particles, such as long strip and sheet shape, is poor in screening rate.
Therefore, it is necessary to ensure that the particle shape of the crushed
material conforms to the sieve standard. Second、 Screen surface structural parameters The structural parameters of the linear vibrating screen are mainly
reflected in the length and width of the screen surface and the size and shape
of the screen. 1. Screen length and width The length of screen surface of linear vibrating screen mainly affects the
screening efficiency and the screen width affects productivity. The screen
surface of straight screen is longer, the material stays on the screen surface
for a long time, and the screening opportunity is more, which will improve the
screening efficiency. In fact, the width of screen surface has different
influence on screening efficiency and screen length on screening capacity. The relationship between screening efficiency and the time of material on
the whole screen is that at the beginning, the screening probability is higher.
Because there are many fine-grained materials on the screen surface at the
beginning, the screening probability is larger in unit time. After a certain
time, the particle size of the materials left on the screen surface is mostly
hard to screen materials close to the size of the screen. Even if the material
stays on the screen surface for a long time (i.e. the length of the screen
surface is large), it is difficult to increase the screening probability of the
material, which leads to the decrease of the screen machine working efficiency.
Therefore, the selection of the appropriate screen surface length can
effectively improve the screening efficiency, and the ratio of the length to
width of the straight screen surface is 1:2-1:3. 2. Shape and size of sieve The selection of the shape of the sieve of the linear vibrating screen
mainly depends on the screening granularity of the materials entering the screen
and the product use under the screen. Compared with other shaped screens, the
size of the materials passing through the circular sieve is smaller and the size
of the materials passing through the rectangular sieve is larger. Therefore, in
order to obtain higher screening efficiency, the different screening materials
should be selected Same shape of sieve. Third、 Vibration characteristic parameters The vibration characteristic parameters of the linear vibrating screen
include the inclination angle of screen surface, the direction angle of
vibration, the amplitude and the vibration frequency. 1. Screen inclination The inclination of the screen surface of the linear vibrating screen is
related to the equipment processing capacity and screening efficiency. When the
screen face inclination increases, the throwing strength of the material on the
screen will increase, the material movement speed on the screen surface will
increase, and the processing capacity of the vibrating screen will be increased.
However, the retention time of the material on the screen is shorter, the
material passing through the screen is less, and the screening efficiency is
reduced. Otherwise, the processing capacity will be reduced and the screening
will be reduced Efficiency is high. In order to control the screening efficiency of the vibrating screen in a
relatively ideal range, the inclination angle of the screen surface of the
general linear vibrating screen is between 0 and 8 °. 2. Vibration direction angle The angle between the vibration direction and the upper screen surface is
called the vibration direction angle. The larger the vibration direction angle,
the shorter the distance of mineral particles moving in each throwing movement,
the slower the speed of moving on the screen surface, the more adequate the
screening of materials, so the screening efficiency is higher. The smaller the
vibration direction angle, the longer the distance of material moving forward on
the screen surface when throwing, the shorter the time passing through the
screen surface, the material can not be fully screened, so the screening
efficiency is low. In order to ensure the screening efficiency of the linear
vibrating screen, the range of the vibration direction angle is 30-60 ° is
appropriate. 3. Amplitude The amplitude of the linear vibrating screen determines the energy of the
material particles moving on the screen surface. The larger the amplitude, the
greater the amplitude of the material moving in the direction of the vertical
screen surface during the screening process, the less the blockage of the
screen, the more favorable the screening, the better the screening efficiency;
otherwise, the screening efficiency is poor. Generally, the selection of
amplitude is determined by the size and properties of the materials entering the
screen. For materials with larger particle size, it is suitable to choose linear
sieve with larger amplitude and lower frequency; for materials with smaller
particle size, it is easy to select linear screen with smaller amplitude and
higher frequency. 4. Vibration frequency The vibration frequency of the screen surface of linear vibrating screen
mainly affects the movement state of mineral particles, and the low or too high
frequency is not conducive to the material passing through the sieve. The
vibration frequency is too low, the probability of movement of mineral particles
in the direction of vertical screen surface is small, and the screening rate is
low; the vibration frequency is too high, and the vibration of mineral particles
is easy to be confused, which affects the screening efficiency. Generally, the
range of vibration frequency of the screen surface of the linear vibrating
screen should be controlled within 15hz-30hz. The above is the influence of the linear vibration screen screening
efficiency of several aspects, if you want to effectively improve the screening
efficiency of the linear vibrating screen, these aspects can not be ignored! In the actual plant, each mineral has its own mineral characteristics, and
has differences in density, hardness, gangue content, etc. Therefore, when
selecting equipment, mineral processing test should be carried out first, and
the suitable linear vibrating screen shall be selected through the test results,
so as to ensure that all parameters of the equipment conform to the mineral
particles.
MORE
