  Description  The multi frequency screen makes the screen machine with two or more than two vibration sources to produce different vibration frequency, so that the screen machine produces different frequency and amplitude , and makes the movement phase angle between the materials changeable in the screening process. The screen machine is provided with a low frequency (24-48Hz) and the relative large amplitude of the excitation force, and multi frequency generator will produce a force with high frequency (190-210Hz) small amplitude acting on the screen, at the same time, the machine increases an ultrasonic frequency (36-38KHz) in the screening cloth. Three different frequency of vibration superposed and interacted, eliminating the sticky and electrostatic generation of material, improving the acceleration of the screen material at the peak, so as to improve the screening efficiency and reduce the blocking hole, and improve the output and quality of the product. Very suitable for the screening of 1mesh to 500 mesh fine powder and ultra-fine powder industry.  Application  This machine uses the latest cleaning way at home and abroad. It can improve the capacity 5-10 times than ultrasonic cleaning. It is widely used in chemical , building, rubber, fossil oil, ceramics, foodstuff, medicine, cement, cast, metallurgy, mine, machinery, electron, fabricate industry etc.  Components  Detail introduction of ultrasonic device  Net rackNet rack is composed of resonant ring, a support and a transducer base. When stick the net, it should be pulled evenly, gelatinize the outer circle first and then the inner circle, because when we found the subnet is loose,we can pull the screen cloth evenly. However, if we first gelatinize the inner circle, the screen cloth will be break easily when pulling it.  Energy TransducerIts screw is 20mm, wrench is 30mm, power is 100w, data lines using high temperature and Wear-resisting lines.  Controllersome situations should be paid attention:When connected to the cable plugs must pay attention to positive and negative, red is positive, black is negative, it would lead to leakage if reverse .Controller has five operating modes for choosing, used to adjust the size of the current。C1 operating mode is strongest, C2 followed, C4 weakest, C5 is pulse state. Each time you press, the operating mode will change under working condition , the conversion cycle from C1 ~ C5.  Common troubles and treatment  Detail description of multi frequency generator  The highest working temperature is 120 ℃. Its noise ranges at 60-75 dBA . High speed and high eccentricity make the multi frequency generator produce a powerful vibration energy. Vibration force and vibration frequency is adjustable. It works reliable, durable, pollution-free and explosion-proof. The shell is made of 304 stainless steel.  Performance Parameter  Attentions  *Vibrator has damage to the equipment, such as excessive force. Please adjust to the appropriate pressure and avoid damage to equipment.  *When fixed the vibrator, it must be fixed with the high tension screw, flat washer and spring washer.  *The supply air must be clean. Because pollution air will accelerate grinding of piston loss and cause the bad seal and vibrator doesn't work. The instrument air need add oil sprayer, put clean engine oil or lubricating machine and transfer to the mist state, making the work air clean and lubrication. Reducing friction of the piston and the housing wall to achieve the best effect and increase service life.  Technical support  First  Exciter to be introduced firstly, it is the heart of the vibrating screen.Screening efficiency,time using and maintenance work of life all depends on the exciter.we supply energy-saving and safe vertical exciter.The biggest advantage of the exciter is fully free-oil sealed bearing, low noise and longer life of the machine.  Second  the material for the equipment we adopts fully stainless steel 304 , both side polishing, meet GMP certificate. Mesh cloth use stainless steel 304, wire diameter and sieve pore can meet international standard.  High quality cold-rolled carbon steel sheet is used for the base. After process of sand blasting and spraying paint. It has good resistance to water and corrosion, and wear resistant.Many manufacturer may not take the process of industrial sand-blasting and to spray paint directly to save the cost and reduce the production time.  Third  Standardization of tooling equipment makes the same parts can ues in the other machine. Production parts are all made of mechanical processing, no handwork make the product to the largest conform to the requirement of vibration mechanics. The parts would not crack in the area of mechanical processing and welding parts.It ensure the whole equipment with no liquid leakage  Good polishing.The steel sheet surface get a protective film;Improving the corrosion resistance. Smooth in inner and outer surfaces. The material can run smoothly through inlet and outlet.  Vibrating screen motor, using the United States imported full sealed bearing without oil type, stable operation, low failure rate.
    Relevant:
  • Circular Vibrating Screen

  • Multi Frequency Screen

  • Ultrasonic Powder Sieving Machine

Consulting

  Description

  The multi frequency screen makes the screen machine with two or more than two vibration sources to produce different vibration frequency, so that the screen machine produces different frequency and amplitude , and makes the movement phase angle between the materials changeable in the screening process. The screen machine is provided with a low frequency (24-48Hz) and the relative large amplitude of the excitation force, and multi frequency generator will produce a force with high frequency (190-210Hz) small amplitude acting on the screen, at the same time, the machine increases an ultrasonic frequency (36-38KHz) in the screening cloth. Three different frequency of vibration superposed and interacted, eliminating the sticky and electrostatic generation of material, improving the acceleration of the screen material at the peak, so as to improve the screening efficiency and reduce the blocking hole, and improve the output and quality of the product. Very suitable for the screening of 1mesh to 500 mesh fine powder and ultra-fine powder industry.

  Application

  This machine uses the latest cleaning way at home and abroad. It can improve the capacity 5-10 times than ultrasonic cleaning. It is widely used in chemical , building, rubber, fossil oil, ceramics, foodstuff, medicine, cement, cast, metallurgy, mine, machinery, electron, fabricate industry etc.

  Components

multi frequency vibrating screen chart

  Detail introduction of ultrasonic device

  Net rackNet rack is composed of resonant ring, a support and a transducer base. When stick the net, it should be pulled evenly, gelatinize the outer circle first and then the inner circle, because when we found the subnet is loose,we can pull the screen cloth evenly. However, if we first gelatinize the inner circle, the screen cloth will be break easily when pulling it.

  Energy TransducerIts screw is 20mm, wrench is 30mm, power is 100w, data lines using high temperature and Wear-resisting lines.

  Controllersome situations should be paid attention:When connected to the cable plugs must pay attention to positive and negative, red is positive, black is negative, it would lead to leakage if reverse .Controller has five operating modes for choosing, used to adjust the size of the current。C1 operating mode is strongest, C2 followed, C4 weakest, C5 is pulse state. Each time you press, the operating mode will change under working condition , the conversion cycle from C1 ~ C5.

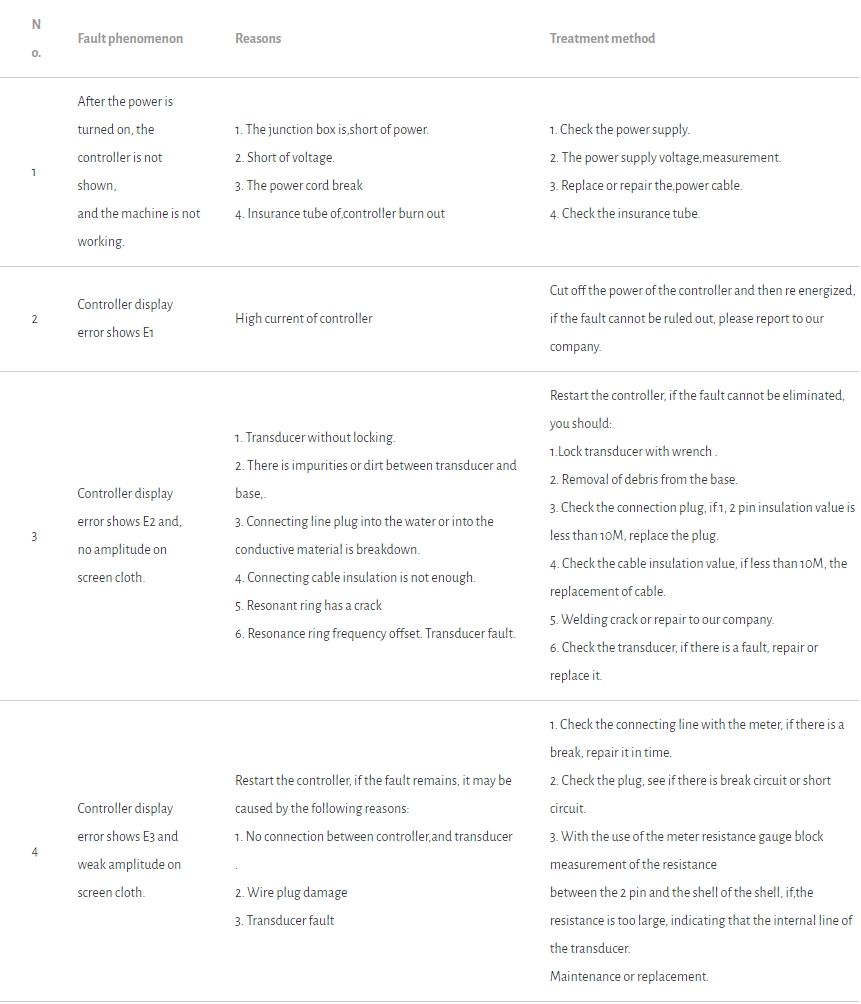

  Common troubles and treatment

infoflow_2023-1-14_10-11-22

  Detail description of multi frequency generator

  The highest working temperature is 120 ℃. Its noise ranges at 60-75 dBA . High speed and high eccentricity make the multi frequency generator produce a powerful vibration energy. Vibration force and vibration frequency is adjustable. It works reliable, durable, pollution-free and explosion-proof. The shell is made of 304 stainless steel.

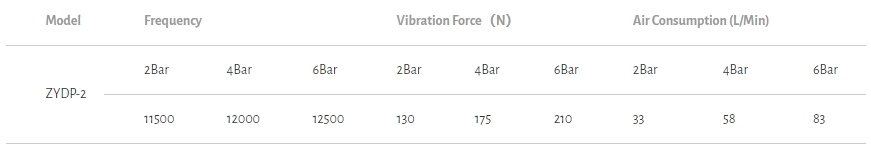

  Performance Parameter

infoflow_2023-1-14_10-11-51

  Attentions

  *Vibrator has damage to the equipment, such as excessive force. Please adjust to the appropriate pressure and avoid damage to equipment.

  *When fixed the vibrator, it must be fixed with the high tension screw, flat washer and spring washer.

  *The supply air must be clean. Because pollution air will accelerate grinding of piston loss and cause the bad seal and vibrator doesn't work. The instrument air need add oil sprayer, put clean engine oil or lubricating machine and transfer to the mist state, making the work air clean and lubrication. Reducing friction of the piston and the housing wall to achieve the best effect and increase service life.

  Technical support

  First

  Exciter to be introduced firstly, it is the heart of the vibrating screen.Screening efficiency,time using and maintenance work of life all depends on the exciter.we supply energy-saving and safe vertical exciter.The biggest advantage of the exciter is fully free-oil sealed bearing, low noise and longer life of the machine.

  Second

  the material for the equipment we adopts fully stainless steel 304 , both side polishing, meet GMP certificate. Mesh cloth use stainless steel 304, wire diameter and sieve pore can meet international standard.

  High quality cold-rolled carbon steel sheet is used for the base. After process of sand blasting and spraying paint. It has good resistance to water and corrosion, and wear resistant.Many manufacturer may not take the process of industrial sand-blasting and to spray paint directly to save the cost and reduce the production time.

  Third

  Standardization of tooling equipment makes the same parts can ues in the other machine. Production parts are all made of mechanical processing, no handwork make the product to the largest conform to the requirement of vibration mechanics. The parts would not crack in the area of mechanical processing and welding parts.It ensure the whole equipment with no liquid leakage

  Good polishing.The steel sheet surface get a protective film;Improving the corrosion resistance. Smooth in inner and outer surfaces. The material can run smoothly through inlet and outlet.

  Vibrating screen motor, using the United States imported full sealed bearing without oil type, stable operation, low failure rate.


Strong manufacturers

Direct sales by manufacturers and guaranteed quality

Technical talents

The company is equipped with many R&D and production talents

Experienced

The company has been based on the industry for many years

Rest assured after sales

Provide customized solutions for customers
