hape conveyor is gluing freely retractable rubber waveform vertical "skirt" on both sides of flat-shaped rubber conveyor belt ,and sticking with a certain strength and elasticity of the crossbeam between the skirts to composite box shaped bucket, so that the material is continuously transported in the bucket. Conveying angle is 0 ~ 90 ° (70 °or less is best), Currently, belt width of Z-shape conveyor we mainly produce are: B500, B650, B800, B1000, B1200, B1400, B1600.

　　which are in condition of the ambient temperature is within the range of -19 ℃ ~ + 40 ℃, transporting bulk specific gravity is within 0.5-2.5t / m³. Conveying high temperature, acid-base materials, oil or organic solvents and other ingredients requires the use of special sidewall conveyor belt material, our company can customize special large angle belt conveyors according to your needs.

　　Feature

　　Especially suitable for high lifting height occasion.

　　Large transport capacity

　　Prevent the material scattered

　　Short delivery distance, small space required, convenient process layout.

　　Reduce the scale of infrastructure, cost-saving etc.

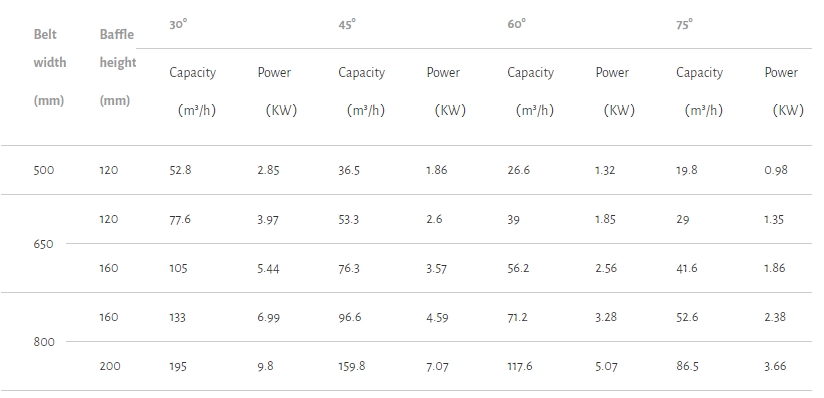

　　Technical Parameter

　　The data in the table according to the tape line speed of 1 m / s, diaphragm spacing ts=0.25m, material density =1t/m University, lifting height H=10m assumption, different conditions should be appropriate conversion.
