Description　　Vibration source three phase asynchrony motor is a kind of universal exciting source for all kinds of vibration machines, such as vibrating feeder, vibrating conveyor, vibrating drying machine, vibrating ore drawing machine, vibrating shake out machine, vibrating sieving machine, vibrating occlusion prevention machine for storage bin, having been applied in many fields like electricity, construction, food, coal, mine, metallurgy, chemical industry, light industry, foundry, railway, cement, port etc.　　Technical Parameter

　　Material: 302,304,304L,316,316L,310,430etc.Wire diameter：0.038-6 mm　　Mesh： 0-500mesh　　Length: 30m-50m/roll or any length available at request　　Width: 0.9144m,1.0m,1.22m,1.524m,1.83m,etc. any width available at request　　Application：security ; protection ; filter in rubber industry, plastics industry and grain industry　　Advantage: Acid & alkali-resisting ; heat-resisting ; corrosion-resisting

　　Material　　Rubber material is common use for many different industries;　　Silicone material is special use for food industry.About the diameter　　400mm, 600mm, 800mm, 1000mm, 1200mm, 1500mm ,1800mm, 2000mm, 2600mm.　　Application　　Rubber seals are use for Rotary vibrating screen machine,　　The main functions are:Fixation; sealing; damping; reduce noise　　Packing　　According to the different transport requirements to packing, carton, normal wooden case, or Fumigation-free wooden case.

　　Specification　　The wire diameter from 0.1~10mm.　　Material　　Titanium, Carbon steel, Silver, Nylon, Cr5, rubber , compound, Iron,SUS304/316/302 etc.　　Iron springSurface Treatment　　Zn-plating, Ni-plating, Cr-plating, Tin-plating, copper-plating, the wreath oxygen resin spraying, the heat disposing, hot-dip galvanizing, black oxide coating, painting, powdering, color zinc-plated, blue black zinc-plated,rust preventive oil, titanium alloy galvanized, silver plating, plastic, electroplating, anodizing etc.　　Applications　　Automotive, instrument, electrical equipment, household appliances, furniture, mechanical equipment, daily living equipment, electronic sports equipment, light industry products, sanitation machinery, market/ hotel equipment supplies, art ware etc.　　Packaging　　Inner plastic bag, outer carton box, and we can also pack products according to your requirements.

　　Structure　　1. Ultrasonic control instrument　　38 KHZ high-frequency ultrasonic generator. The built-in microcomputer chip, according to the different states of ultrasonic automatic tracking whole digital frequency, without manual adjustment, operation simple and convenient.　　High frequency cable　　use cable connection between ultrasonic oscillator and ultrasonic control instrument.　　Connector　　air connector.　　Converter　　high frequency ultrasonic devices.　　Ultrasonic rack　　consists of outer rack and resonance.　　Screenapply 10 mesh to 635 mesh　　2.Ultrasonic controller　　3.Displays status　　On ultrasonic controller panel has "work mode" and "work/pause" button, in addition has a digital window to display the working condition.　　Ultrasonic controller has 5 kinds of working mode, user can choose according to need:　　"Work/pause" button: press this button once in the working condition, ultrasonic suspend work, window shows "0000 PX" (X according to different work mode display 1 ~ 5); in suspended state press the button once, ultrasonic return to normal working condition.　　"Work mode" option button: ultrasonic controller has C1 ~ C5 five different work mode, C1 working mode the strongest, C2 less than C1, C4 is weakest, C5 for pulse condition. In ultrasonic system working condition, you press once will change a work mode, from C1 ~ C5 conversion cycles.　　Memory function. For example: if the last time closed when ultrasonic controller working mode is the C3, turn on it, this controller is still working in the C3 model.　　Error display function. In working status, the screen shows E indicate error information. the Numbers behind E indicate wrong type.　　4.Displays status table

　　FeaDescriptiontures　　It is composed of vertical motor and upper and lower oscillator and is connected with advanced single-flange structural, so that the vertical vibrating motor has the following advantages.　　1.Small volume, light weight, start quickly;　　2.Low noise, low energy consumption, high efficiency;　　3.Easy stepless adjustment of excitation power and a wide range of adjustable, vibration without mechanical conduction;　　4.Convenient installation, easy maintenance, long life.　　Partial Principles　　The multi-direction exciting forces(horizontal, vertical, tilt) generated by the motor itself can help to form multi-types of movements like rapid scattering, central focusing, flat rotation and three-D rotation etc., which can control some mechanical indexes such as materials discharging speed and processing accuracy to meet different requirements for exciting source with its special structure.

　　Working principle　　Screw conveyor feed materials along the tube of a fixed chassis by a rotating spiral. Head and tail bearing can move outside the body, hanging bearings use sliding bearings with dust-proof sealing device. Bearing shell commonly adopts powder metallurgy, transporting cement uses blanket bearing, hanging shaft and screw are linked by slider. When removing the screw, you don’t need to move driving device, when disassembling hanging bearing, you don’t need to move the screw shaft and when lubricating hanging bearings, you don’t need to remove the cover .　　Features　　Large carrying capacity, safe and reliable.　　Strong adaptability, easy installation and maintenance, long service life.　　Small volume and high speed, rapid and uniform delivery.　　The cleaning device installed on discharge end, low noise and strong adaptable,flexible layout for input and output .　　Well sealing, the shell is made of seamless steel pipe.　　Good rigidity, end part connects with flange.　　Application　　Screw conveyor is widely used in chemical,building materials, electricity,metallurgy, coal, grain etc.It is suitable for horizontal or inclined conveying powder,granular and small block materials, and not suitable for transporting perishable,viscous and easy to agglomerate material.The ambient temperature for screw conveyor is -20 ~ 50 ℃; material temperature is less than 200 ℃, the inclination angle β≤20 °;convey length is generally less than 40m and maximum not more than 70m.　　Technical Parameter　　screw conveyor specification and technical parameter are shown in Table 1, the length from 3.5 m to 80 m, standard interval 0.5 m of a file. two types of driving device, single-ended drive- screw conveyor length is less than 35 m, double-ended drive- screw conveyor length greater than 35 m.

　　Description　　Vacuum conveyor can automatically transport variety of material to mixing machine, packing machine, injection molding,grinder etc, with the advantage of cost reducing and no powder pollution.　　The vacuum conveyor consists of vacuum pump(no oil and water), Stainless steel suction tube, flexible hose, PE filter or SUS316 filter, compressed air cleaning device, pneumatic discharging device,vacuum hopper and automatic level control device.　　It can meet GMP standard and is the ideal feeding system for food industry and pharmaceutical industry.　　Working principle　　Vacuum Conveyor is comprised of vacuum(no oil, nio water), feeding tube, PE filter, vacuum hopper, automatic control device, pneumatic discharging device and compress air device, etc.　　Application　　Vacuum Conveyor is new product which is developed by absorbing the similar product from abroad. At present, it is the ideal feeding equipment which is used for transporting the powder material, granular material and powder & granular material or feeding the material directly into the mixer.　　It highly reduces the man power and solves outflow of powder etc.　　It has "GMP" certificated which is widely used in the pharmacy and foodstuff industry.　　Technical Parameter

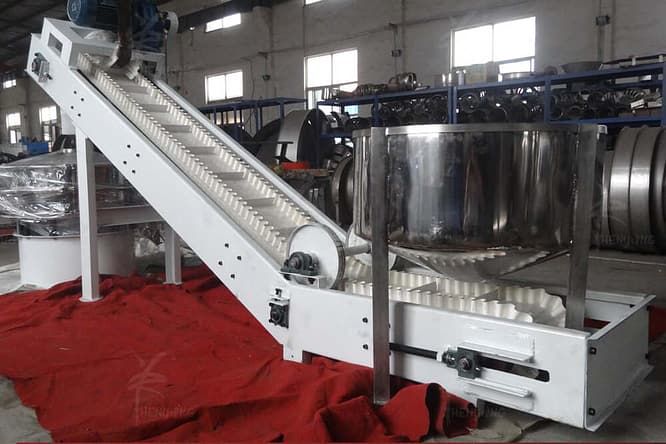

　　hape conveyor is gluing freely retractable rubber waveform vertical "skirt" on both sides of flat-shaped rubber conveyor belt ,and sticking with a certain strength and elasticity of the crossbeam between the skirts to composite box shaped bucket, so that the material is continuously transported in the bucket. Conveying angle is 0 ~ 90 ° (70 °or less is best), Currently, belt width of Z-shape conveyor we mainly produce are: B500, B650, B800, B1000, B1200, B1400, B1600.　　which are in condition of the ambient temperature is within the range of -19 ℃ ~ + 40 ℃, transporting bulk specific gravity is within 0.5-2.5t / m³. Conveying high temperature, acid-base materials, oil or organic solvents and other ingredients requires the use of special sidewall conveyor belt material, our company can customize special large angle belt conveyors according to your needs.　　Feature　　Especially suitable for high lifting height occasion.　　Large transport capacity　　Prevent the material scattered　　Short delivery distance, small space required, convenient process layout.　　Reduce the scale of infrastructure, cost-saving etc.　　Technical Parameter　　The data in the table according to the tape line speed of 1 m / s, diaphragm spacing ts=0.25m, material density =1t/m University, lifting height H=10m assumption, different conditions should be appropriate conversion.

　　Application　　Chemical, food and spices, plastics, mining, medicine, wood and plywood, metallurgy, rubber, fodder, fertilizer, sugar, salt, renewable industry.　　Features　　Up to 5 times outlet compared than common sieving machine.　　At most 6 Level separation.　　Sieving efficiency is as high as 90% -95%.　　When using the silicone rubber balls, ultrasonic and other high-performance mesh- cleaning device system, the sieve aperture will not be blocked.　　Enclosed cleaning dust, safe operation; the acceleration is 4.5 times lower than common vibrating screen.　　Noise<75 dB. Re-optimization is balanced, ground-based dynamic load is low.　　Technical Parameter

　　Description　　Gyratory screening machines is efficient screening machine which can meet the large capacity, high-precision requirements. It is widely used in chemical and metallurgical, mining, feed, food and other industries. Especially for heavy alkali, salt, resin, fertilizer, urea granule size, feed, reduced iron powder, zirconium oxide, ceramic, barite, etc.　　Working Principle　　The unique gyratory motion imparts a combination of actions to the material as it passes along the screen surface. It begins with a horizontal circular motion at the feed end, gradually diminishing along the length of the machine to an elliptical path, and finally to an approximate straight-line motion at the discharge end. There is no vertical component to this motion thus keeping the material in constant contact with the screen surface.Material Motion Feature　　Circular motion at feed end　　The gyratory motion at the feed end of the machine immediately spreads the material across the full width of the screen surface to maximize screen utilization even though the feed is from a single point. At the same time, this motion stratifies the material, causing the fines to sink down against the screen surface. The particles that are appreciably smaller than the openings quickly pass through at this part of the screen.　　Changing to elliptical motion at center　　As the circular motion diminishes into an elliptical path, the gentle near-horizontal motion causes the fine particles closer in size to the screen mesh the near-size particles to fall through the mesh openings.　　Straight-line motion at discharge end　　The nearly linear reciprocating motion at the discharge end of the Gyratory Screener removes those particles closest in size to the mesh openings while gently conveying the oversize material off the screen.　　Feature　　Good sealing, balance weight can provide slight vibration and low noise, environmental protection.　　Combination of Circle, elliptic, linear motion, high screening effect .Suitable for various material screening.　　Equipped with automatic tension and automatic cleaning sieve net installation system which can make the screen mesh long service life and high efficiency , change the screen mesh conveniently.　　Reinforced base ensure the equipment operation machine more balance, can also according to the actual site conditions the perching hook to meet customer’s reform needs.　　Improve wire rope hanging structure, to avoid steel wire wear.　　Two or three decks screen frame design can be choosed.　　Used for powder or granule feed screening and grade, can also be used for voidance of raw materials in feed factory,the grading of intermediate products after second smashing.　　Application　　Lab testing sieve is made for the measure of particles size distribution and the determination of impurity content in solid and liquid，which is extensively used in scientific laboratories and quality inspection departments　　About the separation equipment, we usually call it plant rotary screen because of its moving track is gyratory along a circular on one plane. It has been successfully applied to screening granular urea in fertilizer plant. But it is also used to screen other thounds of different materials and is suitable for many industries and application as below:　　Chemical, carbon product, wood chips, grain cleaning, mineral, fertilizer, steel shot, clay, animal feed etc.　　Technical Parameter

　　We adopt new type dynamic generator, making three dimension powers more obviously and successfully, making the scale of processed materials enlarged. Accordingly this makes rotary-vibrating-screen capable of processing various kinds of materials.　　Functional principle　　Its vertical motor, which is installed eccentric hammers on the top and bottom, is regarded as a vibratory source. The eccentric hammers change rotation into horizontal, vertical and inclined movement, and then pass the movement to the sieving surface. Adjusting the phase angle on the top and bottom can change trajectories of the materials on the sieve.　　Application　　Various kinds of the materials can be screened by the machines including those within 0~400mesh like dry, wet, refined, coarse, heavy and light as well as those within 0~600mesh like liquid and pasty materials.　　Feature　　High efficiency, ingenious design, durable and suitable for screening any kinds of the powder and viscous fluid.　　No jam for the screen net, no powders flying around and no liquid leaking out when running, fully sealed structure and environmentally friendly.　　Small size and can be moved easily　　The screen nets are uniquely designed under 500 mesh, and the net.　　It only takes 3~5 MINS to replace and clean the net conveniently.　　Stainless steel parts contacting materials.　　Easy to operate, impurities and coarse materials can be discharged automatically, continuous operations.　　Technical Parameter
