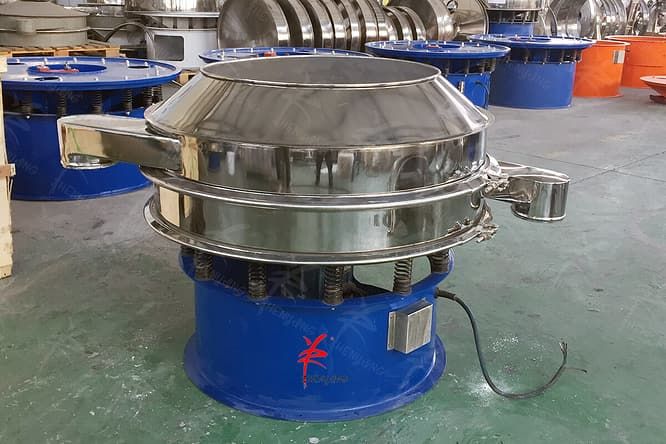

Description　　Filter sieve machine are designed for you to easily observe materials processing with bigger materials inputs, the principle same as Rotary Vibrating Screen.　　Features　　Round design, no dust pollution, no leaking liquid.　　Structure is suitable for small volume and light heavy, easy to be installed and maintained.　　Rapidly clear up each material and grain inside the slurry, the solid matter can automatically discharge.　　Adjustable outlet, facilitate to replace the screen.　　Application　　The application same as Rotary Vibrating Screen, it is especially suitable for the filtration of slurry, glaze and pigment in ceramic industry.Technical Parameter

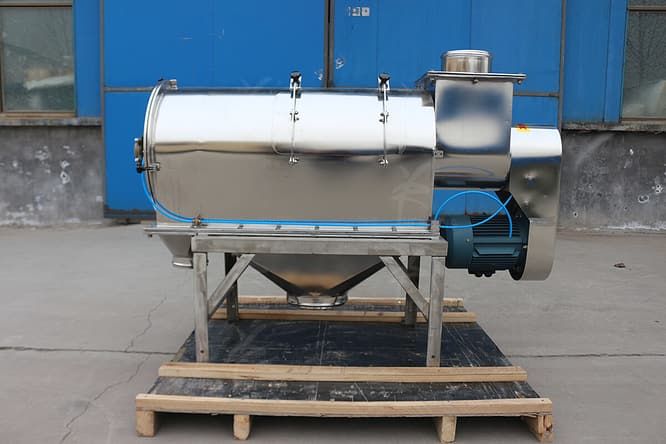

　　Description　　The cylinder screen mesh of this device is placed inside the machine. The materials enter the net tube with airflow mixed and atomized after passing the screw conveying system; some of the materials are sprayed through the net and discharged from the fine stuff portal by the centrifugal force and cyclone propelling power, which are caused by the rotor vane inside the net tube. Other materials which cannot cross the net, are discharged from the rough stuff portal along the net tube wall.　　Description　　TThe machine is available in the industries such as metallurgy, mining, pharmacy, food, chemical engineering, metal powder and nonmetal powder etc.　　Feature　　The whole machine is in a small size and light so that it is stable in operation, free from vibration and noise, and with its good sealed structure, it is free from dust and performs in high efficiency.　　The shell of machine is in a new design which makes it easy to install and convenient to control.　　The machine can operate either in a single unit or multiple units， and it is safe and reliable for a long time operation.　　The screen-mesh can be cleaned automatically by cyclone.　　The machine has the function of re-crashing the agglomeration materials.　　The new type roller bearing can prolong the service life.　　The machine can work with the pneumatic conveying systems, and materials can be directly sent into the wind path to save resources.　　New design: The airflow protection system can transfer the purified air to the two ends of the device, which will reduce the temperature created in the operation of the device.　　It will form the air-isolated layer to avoid the powder entering the bearing so as to prolong the service life of the bearing effectively, reduce the maintenance frequency, and increase work efficiency.　　The machine can be specially designed to meet special requirements.　　Technical Parameter

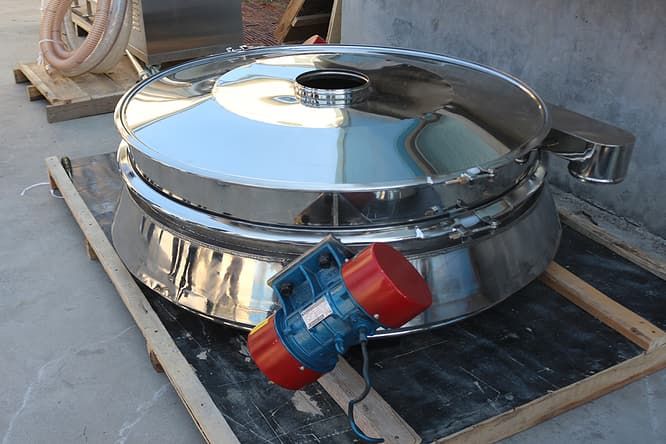

　　Description　　ZYZP direct discharging screen is a new and multifunctional screening machine, using one horizontal motor as the source of vibration. Variety of adjustment ways for movement of materials on screen surfaces. Materials can be discharged directly.　　Functional principle　　High screening efficiency　　Large handing.　　Easy to replace the net.　　Simple to operate .　　Convenient to clean..Application　　Extensively used for sifting, sorting and screening a varietyof powder, granular and pellet materials in Flour, Starch,Washing powder, Metal powder, Additive, Chemical,Nonmetal mineral etc. Be provided with 600mm up to 1800mm. The processing capacity can reach up to 350Kg/150 seconds.　　Technical Parameter　　This model of screen is usually used in flour industry and noodle making industry or related lines.It is the primary consideration for flour making stream line.　　Parameter form　　Size Instuction

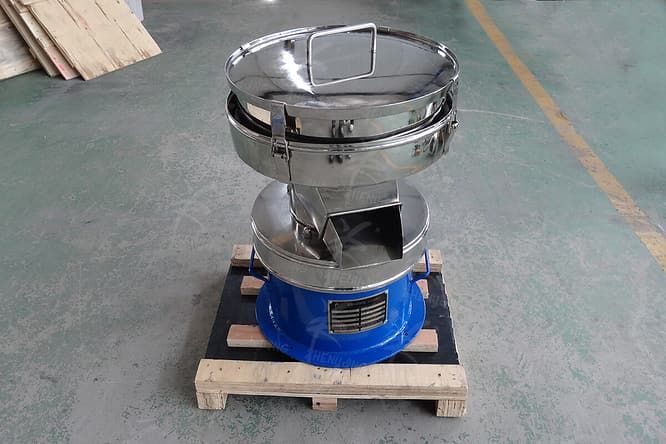

　　Description　　Filter is a kind of small size machine, which is designed with the features of convenient to move, high efficiency, and low noise, small size, suitable for any granule, powder, and mucilage. For example, total 1200 liters 1.1 ratios spray-paint can be filtered by the machine when using 325 Mesh screen net; The processing quantities of flour can reach 700 kg when the screen net of 30M being used,. It is also well-qualified for filtering of ceramic glaze.　　Application　　Can be widely used in geological, chemical, cement, medicine, research and production laboratories and other departments of scientific research and production test.　　Feature　　High efficiency, smart design, fit for any kind of powders and serosity.　　Easy net replacement which only costs 3-5 minutes to finish, easy operating and cleaning.　　No-block sieving mesh, no powder flying, and the minimum sieving size is 500M or 0.028mm.　　Impurity and bigger particles can be automatically discharged.　　Working constantly.　　Specially designed net frame and long service life for sieving nets.　　Small volume and easy to be moved.　　Application　　Lab testing sieve is made for the measure of particles size distribution and the determination of impurity content in solid and liquid，which is extensively used in scientific laboratories and quality inspection departments　　Technical Parameter

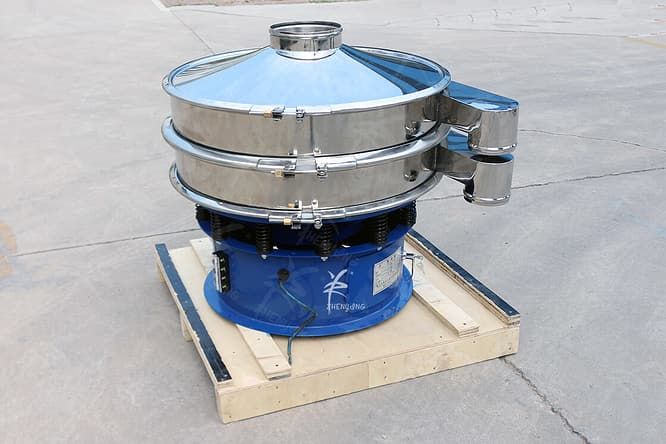

　　We adopt new type dynamic generator, making three dimension powers more obviously and successfully, making the scale of processed materials enlarged. Accordingly this makes circular vibratory screen capable of processing various kinds of materials.　　Functional principle　　Its vertical motor, which is installed eccentric hammers on the top and bottom, is regarded as a vibratory source. The eccentric hammers change rotation into horizontal, vertical and inclined movement, and then pass the movement to the sieving surface. Adjusting the phase angle on the top and bottom can change trajectories of the materials on the sieve.　　Application　　Various kinds of the materials can be screened by the machines including those within 0~400mesh like dry, wet, refined, coarse, heavy and light as well as those within 0~600mesh like liquid and pasty materials.Feature　　High efficiency, ingenious design, durable and suitable for screening any kinds of the powder and viscous fluid.　　No jam for the screen net, no powders flying around and no liquid leaking out when running, fully sealed structure and environmentally friendly.　　Small size and can be moved easily.　　The screen nets are uniquely designed under 500 mesh, and the net.　　It only takes 3~5 MINS to replace and clean the net conveniently.　　Stainless steel parts contacting materials.　　Easy to operate, impurities and coarse materials can be discharged automatically, continuous operations.　　Technical Parameter
